Quality assurance becomes more useful when the test object reflects the question your imaging team needs to answer. A chest phantom may help you evaluate CT number stability, attenuation, protocol behavior, image quality, or projection-imaging consistency. The right design depends on the modality and measurement goal. For broader planning, explore RSD Phantoms’ CT quality assurance solutions.
Request a Quote from RSD Phantoms for a chest phantom matched to your QA requirements.
A chest phantom ct setup is a controlled imaging test object used to assess how a CT system performs with chest-like attenuation, dose protocols, image-quality tasks, or repeatable geometric measurements. Anthropomorphic designs add anatomical context, while geometric designs emphasize standardized quantification.
Understanding what each design represents, and what it cannot represent, makes it easier to select a phantom for CT, digital radiography, or both. Start with the role of a chest phantom in medical imaging.
What Is a Chest Phantom in Medical Imaging?
A chest phantom is a controlled test object used to evaluate imaging equipment, acquisition protocols, and image quality under repeatable conditions. It gives medical physicists and imaging teams a consistent physical subject for testing without relying on patient examinations. In professional QA, the appropriate design depends on the question being measured, the modality in use, and the level of anatomical context required.
Anthropomorphic and geometric designs
An anthropomorphic phantom represents selected features of the human body, such as the overall form and internal structures of the thorax. This design can provide a more clinically familiar context for teaching, training, image quality review, dosimetry verification, and protocol verification. RSD Phantoms’ Thorax Phantom is documented for these applications across CT, X-ray, and fluoroscopy, making the Thorax Phantom a relevant option when the test requires chest-like context.

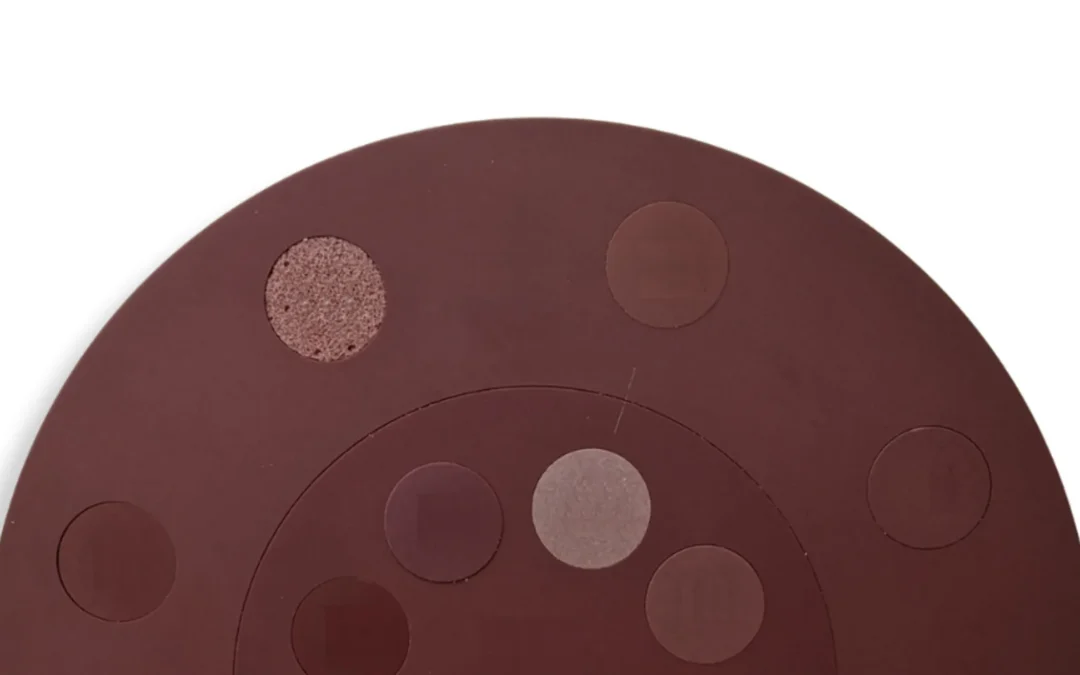

A geometric phantom uses defined shapes or material regions to support focused, repeatable measurements. For example, RSD’s CT Number and Electron Density QA Phantom is described as a geometric QA design focused on CT number and electron-density evaluation. It is suited to a measurement question rather than a broad representation of thoracic anatomy. The two approaches are complementary: anthropomorphic models add physical and anatomical context, while geometric designs can isolate a specific measurement task.
CT and projection imaging contexts
In CT, a chest phantom may support evaluation of reconstructed image characteristics and protocol behavior across a volume. In digital radiography or fluoroscopy, the test emphasizes projection-image acquisition, positioning, and exposure consistency. A phantom designed for one context is not automatically appropriate for another, so the documented modality scope matters. Radiology Support Devices Inc., operating as RSD Phantoms, manufactures anthropomorphic phantoms and imaging solutions for diagnostic imaging and quality assurance. Selection should begin with the QA objective, then confirm that the phantom’s documented applications match the system and protocol being tested.
How a Chest Phantom CT Setup Supports QA
A practical workflow should connect phantom measurements to the way the CT system is used clinically. The CT quality assurance solutions from RSD Phantoms can provide a starting point for defining that program, while the specific acceptance criteria should come from the applicable protocol, accreditation requirements, and site procedures.
- Establish a baseline. Position the phantom consistently, confirm scanner readiness, and record the system, reconstruction method, phantom orientation, and environmental conditions. If a water phantom is part of the program, check water CT number accuracy, artifact absence, and uniformity across the field of view before proceeding. The ACR describes these checks as preliminary steps for phantom testing.
- Match clinical acquisition parameters. Scan the chest phantom using acquisition parameters consistent with the clinical examinations being evaluated. Document kVp, tube current or modulation settings, pitch, collimation, scan length, reconstruction kernel, slice thickness, and dose indicators.
- Measure CT number and HU behavior. Place regions of interest consistently and compare results with the expected material response or established baseline. Track drift rather than treating a single value as a complete assessment.
- Evaluate low contrast and CNR. Use the relevant low-contrast objects or regions to assess contrast-to-noise ratio under the selected protocol. Keep reconstruction and display conditions consistent when comparing scans.
- Check uniformity. Compare measurements at the center and peripheral regions of the phantom. A systematic spatial difference can indicate changes in calibration, beam quality, reconstruction, or positioning.
- Inspect for artifacts. Review the complete image series for rings, streaks, shading, motion-related effects, and other unexpected structures. Record their location and severity so that follow-up testing is reproducible.
- Confirm repeatability. Repeat the scan or selected measurements using the same setup, then compare results with the baseline and defined tolerance limits. The ACR summarizes CT phantom evaluation around CT number calibration, low-contrast criteria including CNR, uniformity, and artifacts. Review the ACR CT phantom testing guidance when establishing the site’s documented procedure.
How Do Attenuation and Low-Dose Protocols Change the Test?
A chest phantom CT test is shaped by how closely the test object represents the attenuation conditions of the intended examination. Material selection can be evaluated using linear attenuation coefficients and expected Hounsfield unit (HU) values at effective energies relevant to chest CT. In an anthropomorphic or hybrid design, the surrounding structure also matters because it can approximate different patient diameters and allow assessment of automatic tube-current modulation (TCM) in chest-like anatomy. Research on hybrid phantom design describes this protocol-level approach.
Low-dose testing should therefore use the acquisition settings that the QA program intends to evaluate. A phantom can help compare image noise, signal-to-noise behavior, attenuation consistency, and task performance across protocol changes. But the meaning of each result depends on the scanner settings and the measurement objective. CTDIvol is useful for protocol documentation, yet it is not an estimate of an individual patient’s dose. For chest imaging, it is calculated with a standard 32 cm acrylic phantom and represents an average dose estimate within that phantom. It also varies with technique factors, the scanned region, and scan length. The limitations are summarized in this review of CT dose metrics.
Interpretation should remain protocol-specific. A result from one tube voltage, reconstruction method, pitch, or TCM setting should not automatically be treated as a result for every chest examination. The test question may also be task-based rather than purely physical. For example, a hybrid phantom can be used to explore how protocol and dose level affect identification of nodules with different sizes and morphologies.
One low-dose study used an accreditation phantom followed by a lung phantom containing nodules. The reported protocol reduced dose by about 70 percent, with changes in signal-to-noise ratio and image noise but little change in nodule detectability in that phantom. That finding is specific to the study design and should not be generalized to another scanner, phantom, protocol, or clinical task. See the PubMed record for the study context.
How Are Chest Phantoms Used in DR and Fluoroscopy QA?
Digital radiography (DR) and fluoroscopy produce projection images, so the x-ray beam passes through the subject and is recorded on a detector from a selected angle. CT instead acquires multiple projections for cross-sectional reconstruction. That difference changes what a phantom can help you evaluate. In DR, the emphasis may include positioning, exposure consistency, detector response, contrast, spatial detail, and visible artifacts. Fluoroscopy adds time-dependent imaging, changing views, and, depending on the protocol, dose or image-quality behavior during an examination.
A useful workflow begins with a documented setup. Position the phantom using a repeatable orientation, record source-to-image distance and relevant field settings, and keep exposure factors consistent with the QA question. For fluoroscopy, document the view, magnification or imaging mode, pulse or frame settings when applicable, and any other factors that affect the acquired image. Consistent positioning makes comparisons more meaningful, while a changed setup can make a difference appear to be a system issue when it is actually a test-condition issue.
Reviewing projection-image quality
Review should follow the intended task rather than rely on a single universal pass threshold. Depending on the protocol, assess visibility of relevant structures, contrast, sharpness, noise, geometric distortion, detector artifacts, and repeatability. Establish local baselines and apply the tolerances specified by the applicable QA program or equipment documentation. This article does not assign universal DR or fluoroscopy tolerances.
RSD documents its Thorax Phantom for teaching, training, image quality, dosimetry verification, and protocol verification across CT, X-ray, and fluoroscopy. That documented cross-modality scope does not mean every CT-focused phantom is suitable for projection imaging. A phantom designed primarily for CT number or electron-density evaluation may answer a focused CT measurement question without representing the positioning, anatomy, or projection-image tasks needed for DR or fluoroscopy. For broader protocol planning, see RSD’s CT quality assurance solutions and confirm the intended modality with the technical documentation before selecting a model.
Anthropomorphic vs. Geometric Chest Phantoms: Which Fits?
The right design depends on the question your QA program needs to answer. Anthropomorphic models provide chest-like anatomy and attenuation context, while geometric models make controlled measurements easier to repeat and compare over time. Neither is an absolute representation of a patient. Published work cautions that even conventional phantoms approximate human absorption, x-ray attenuation, and geometry rather than serving as absolute benchmarks (published phantom comparison).
| Consideration | Anthropomorphic design | Geometric design |
|---|---|---|
| Primary value | Represents chest-like anatomy and attenuation context for protocol, image-quality, or task-based evaluations. | Provides a defined geometry for repeatable CT number, electron-density, dose, or uniformity measurements. |
| Useful when | You need to examine how anatomy-like structures affect acquisition, reconstruction, or image interpretation tasks. | You need stable baselines, comparable measurements, or a focused system-performance check. |
| Key limitation | Anatomical realism does not make the model a universal patient surrogate. Results remain design- and protocol-dependent. | A simplified shape may not reproduce the attenuation or spatial context of a chest examination. |
For chest CT studies involving automatic tube-current modulation, an anthropomorphic or hybrid setup may help represent attenuation across different effective patient diameters and evaluate the system response in chest-like structures (hybrid chest phantom research). That application is different from interpreting CTDIvol. CTDIvol is an estimate of average dose in a standard 32 cm acrylic phantom, not a surrogate for an individual patient’s dose (CT dosimetry review).
A practical program may use both designs. RSD’s geometric CT number QA phantom is documented for CT number and electron-density evaluation, while the RSD Thorax Phantom is an anthropomorphic option documented for image quality, dosimetry verification, and protocol verification across CT, X-ray, and fluoroscopy. Select by the measurement output, anatomy or attenuation context, and protocol range you need to evaluate.
What Specifications Should You Confirm Before Choosing?
A useful specification review starts with the test, not the product name. Confirm whether the chest phantom will support CT, projection imaging, fluoroscopy, or more than one modality. Then define the anatomy you need represented, including the thorax geometry, lung fields, skeletal structures, and any positioning constraints. An anthropomorphic model may provide clinical context, while a geometric design may offer more repeatable measurement conditions.
Material, inserts, and protocol range
Ask how attenuation is characterized and which HU ranges are documented for the materials relevant to your protocol. Do not assume that a tissue-equivalent claim applies to every model or every insert. Clarify whether the phantom includes removable targets, nodules, or other inserts, what sizes and material contrasts are available, and whether their locations can be changed. Some competitor product sheets, for example, list simulated tumors with multiple sizes and HU variations. Treat those details as product-specific examples, not as a standard feature set.
Confirm the protocol range you need to evaluate, including tube potential, tube current, reconstruction settings, slice thickness, dose modulation, and motion conditions. If respiratory motion matters, the dynamic anthropomorphic thorax phantom is documented by RSD Phantoms for simulating breathing motion in diagnostic CT acceptance and radiation therapy QA. Ask how motion amplitude, rate, and synchronization are specified for your intended test.
Practical ownership and documentation
Before purchase, verify external dimensions, weight, field-of-view clearance, table compatibility, storage requirements, and the accessibility of inserts or measurement regions. Confirm the maintenance routine, cleaning limitations, replacement-part process, and expected handling requirements. Finally, request the technical documentation needed for reproducible QA: material or HU data, insert maps, setup and positioning instructions, motion settings, recommended protocols, acceptance criteria if applicable, and any measurement worksheets. These details determine whether the phantom can move from evaluation to a repeatable departmental workflow.
Request a Quote from RSD Phantoms to discuss the right configuration.
Frequently Asked Questions
What is a phantom in a CT scan?
A phantom is a physical test object scanned under controlled conditions to assess aspects of image quality, attenuation, dose behavior, or protocol repeatability. A geometric model supports standardized measurements such as CT number or electron density, while an anthropomorphic chest model adds anatomy-like shape and attenuation context. Phantom testing supports equipment and protocol evaluation; it does not replace patient diagnosis.
How do I choose between an anthropomorphic and geometric chest phantom?
Start with the measurement you need to make. Choose a geometric design when repeatable CT number, electron-density, uniformity, or baseline measurements are the priority. Choose an anthropomorphic design when anatomy-like attenuation, positioning, training, or protocol context matters. Some QA programs use both types because standardized measurement and clinically representative geometry answer different questions.
Can a chest phantom be used to evaluate low-dose CT protocols?
It can support comparisons of image noise, contrast, attenuation, and task performance across selected protocols, provided the phantom and acquisition settings match the question being studied. Interpret dose metrics carefully: a scanner-reported value such as CTDIvol is an estimate tied to a standardized phantom and technique, not a direct measurement of an individual patient’s dose. Document protocol, reconstruction, and evaluation criteria for meaningful comparisons.
Can the same chest phantom be used for CT and digital radiography?
Not automatically. CT evaluates a volumetric acquisition and may require measurements such as CT number, uniformity, or low-contrast performance. Digital radiography evaluates projection images, positioning, exposure consistency, and image quality in a different geometry. A model documented for multiple modalities may support both workflows, but confirm its intended applications and technical documentation before using it for a specific QA test.
Ready to Choose the Right Chest Phantom?
A well-matched phantom can make CT and DR QA testing more relevant to your modality, protocol range, and measurement goals. RSD Phantoms can discuss the anatomy, attenuation, inserts, motion, and documentation needs that shape your configuration. To request a quote or begin a custom inquiry, contact us with the QA requirements your team needs to evaluate.
