Dynamic Breathing Phantom

THE ONLY DYNAMIC ANTHROPOMORPHIC THORAX

  • NEW! Inclusive skin tones, from light to dark complexion, available at no additional cost
  • For use in diagnostic radiology, radiation therapy, and routine quality assurance
  • Faithful simulation of physical form, imaging, and dosimetry properties
  • Moving target to simulate tumor motion with the lung
  • Based on the Alderson Radiation Therapy (ART) Phantom

RSD’s newest edition of the Dynamic Breathing Phantom features simplified wiring, an improved control box, optional air supply, pre-designated profiles of patient-specific breathing patterns, and the option to integrate simple heart and breast models with the phantom. Plus, the complete system is smaller, lighter, and quieter with revised software for Windows 10 providing a more intuitive interface.

Designed for use in diagnostic radiology settings for the acceptance of diagnostic CT-based scanners and radiation therapy machines, as well as the evaluation of patient radiation therapy delivery and dosimetry, RSD’s Dynamic Breathing Phantom achieves realistic anterior ribcage motion by air inflation in realistic breathing patterns. The phantom itself is a simulation of an average adult humanoid torso including lungs, ribcage/chest-wall bone, skin, and sub-dermis. The material properties of the incorporated soft tissue, organs, bones, and joints provide a faithful simulation of the physical thoracic form and of radiological imaging and radiation dosimetry properties.

This unique phantom has a moving target within the lung equivalent lobe to simulate tumor motion inside the lung. The electro-pneumatic motion controller and easy-to-use phantom control software allow users to program different breathing patterns and breathing rates so that they can choose their evaluations to precisely plan dose delivery to any patient. Target motion is controlled independently of the breath motion and may be set to be antithetical or to mimic the recorded motion of a radiation therapy targeted tumor.

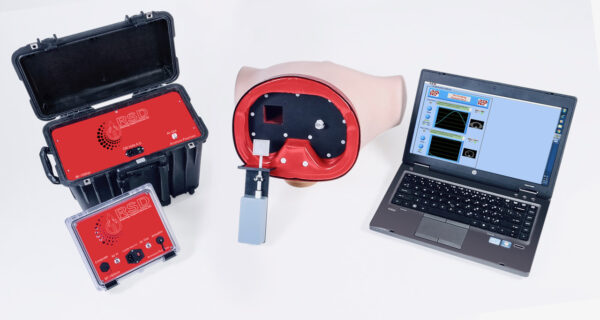

The Dynamic Breathing Phantom System includes: The Dynamic Breathing Phantom (thoracic mannequin), electro-pneumatic motion controller, target fixtures for imaging and radiation dosimetry, individual thorax and target motions & rates: sin2, sin4, sin6, 1-sin4, 1-sin6, 5-20 breath/min, Phantom Control Software for Microsoft Windows, and USB control hardware.

Model Numbers


BF-1500Breathing Phantom with Integrated Control Module & Air Supply
BF-1500CMBreathing Phantom Control Module (using External Air Supply at 110˜230V AC)
BR-1500AIRExternal Air Supply (available in 110˜230V AC)

Applications

  • Diagnostic CT 4D and linear-accelerator MVCT or CBCT surface motion gated image system acceptance
  • Moving internal target tracking evaluation for QA of EBRT, SGRT, IGRT, and BgRT, as well as SPECT and PET imaging
  • Optimization of diagnostic and radiation therapy breathing protocols
  • Routine quality assurance

Modalities

  • Intensity-Modulated Radiation Therapy (IMRT)
  • Stereotactic Body Radiation Therapy (SBRT)
  • Surface Guided Radiation Therapy (SGRT)
  • Image-Guided Radiation Therapy (IGRT)
  • Biology-guided Radiotherapy (BgRT)
  • Gamma Knife
  • CyberKnife
  • CT
  • Megavoltage CT
  • Cone Beam CT
  • X-Ray
